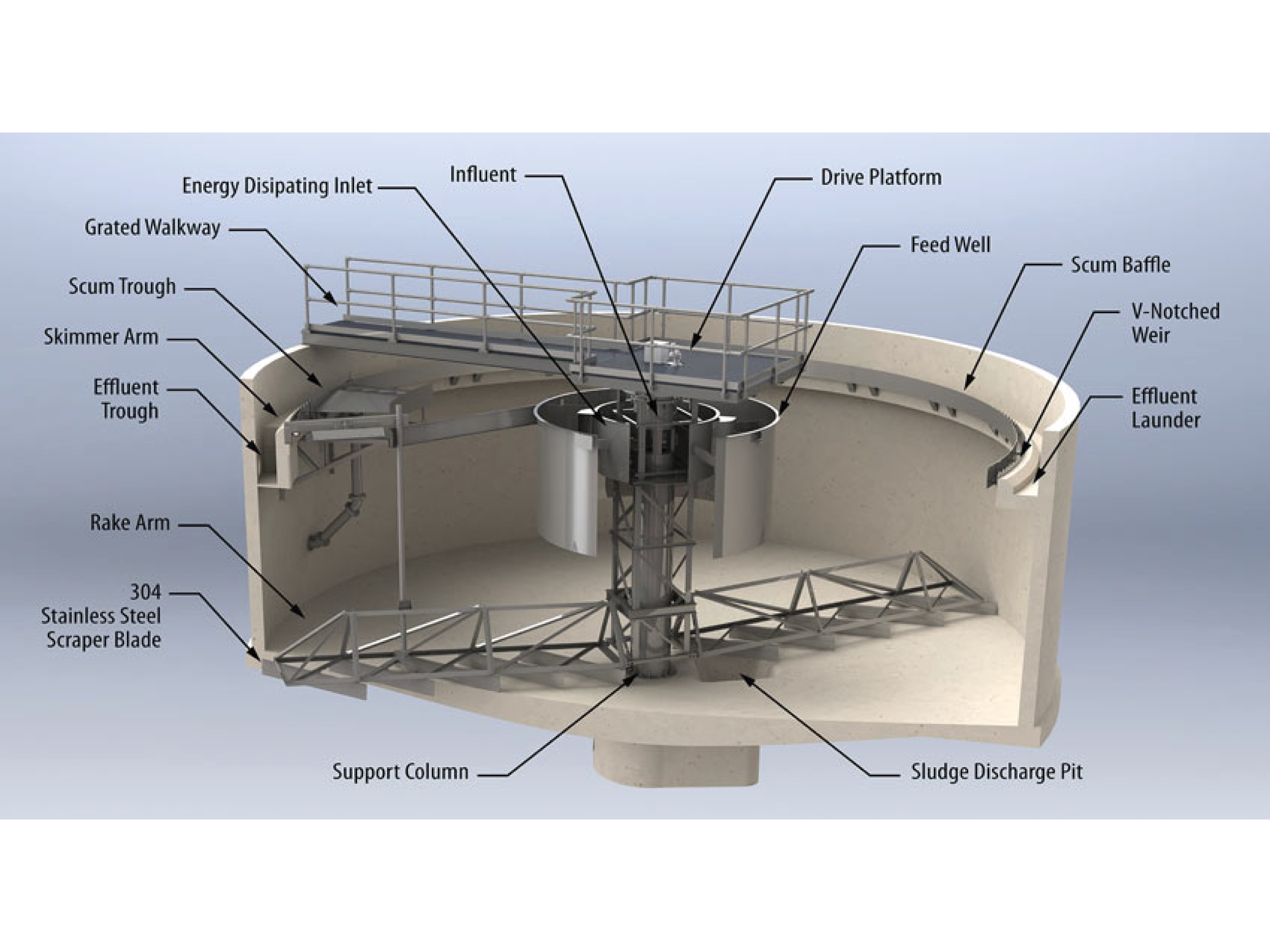

Crysta Clarifier System HRSCC

Crysta Clarifier System (HRSCC)

We provide Crysta HRSCC which is a High Rate Solid Contact Clarifier unit that combines coagulation, flocculation, settling, and sludge removal in a single tank, achieving high efficiency with a smaller footprint compared to conventional clarifiers. It utilizes internal solids recirculation to optimize chemical usage and enhance floc formation.

  • Integrated design & Compact design
  • Internal Sludge Recirculation for Reduced Chemical Usage
  • High Loading Rates & Efficient Treatment
  • Low Shear Mixing & Enhanced Flocculation
  • Easy Operation & Maintenance (Cost-Effective)
  • Flow Range: 10 m³/hr to 1000 m³/hr
  • Material: Available in MS Epoxy coated inside, In Civil Design
  • Handling: Maximum TSS level of 3000 ppm
  • Sludge Consistency: 2 to 5%
  • Industrial Processes
  • Wastewater Treatment
  • Metal Finishing
  • Food and Dairy

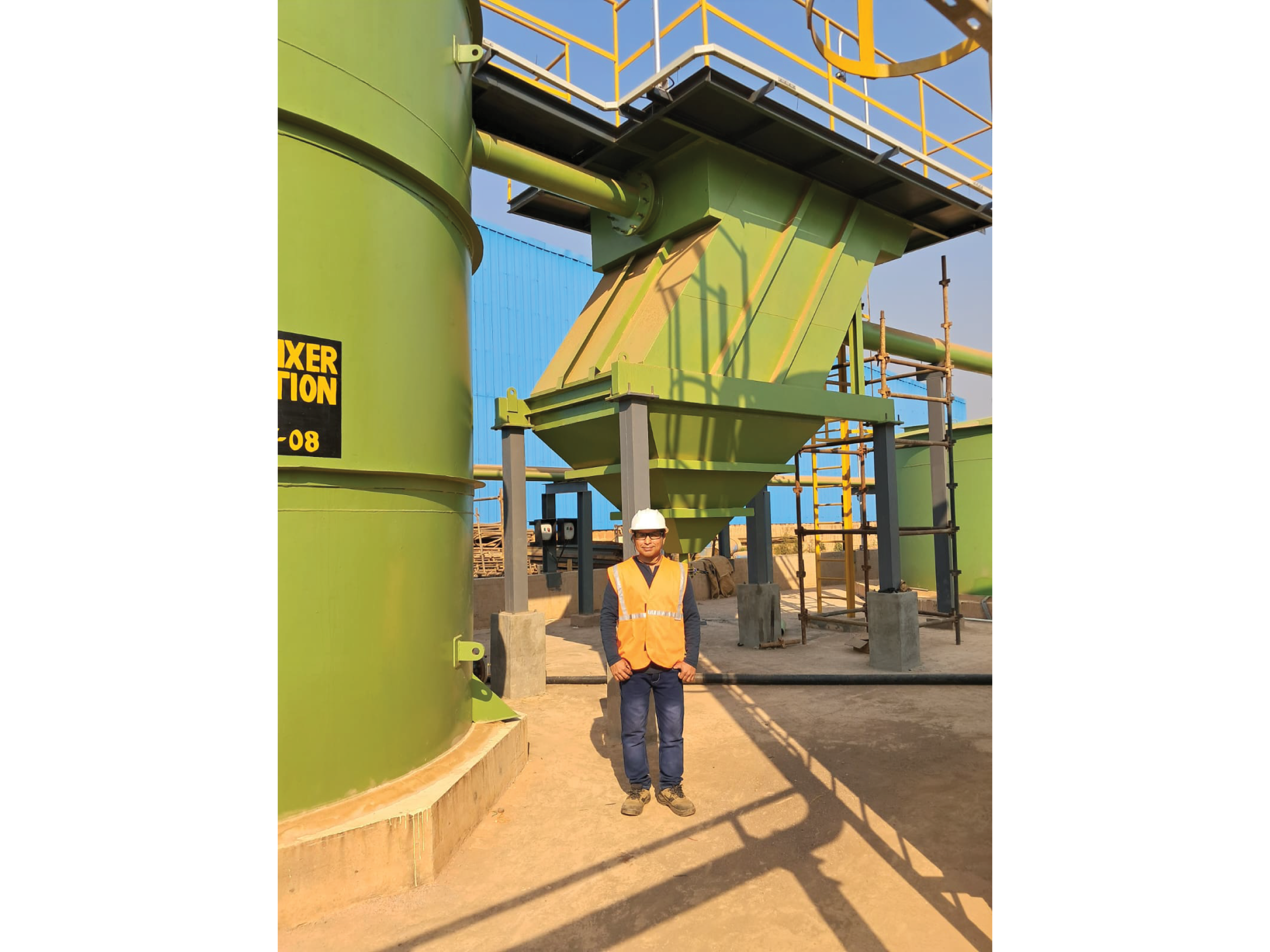

Crysta Lamella Clarifier

Crysta Lamella Clarifier

Removes suspended solids from liquids, often used in wastewater treatment and industrial processes. It utilizes a series of inclined plates to enhance the settling of particles, creating a larger effective settling area within a smaller footprint.

  • Strong Inclined Plates for Increased Settling Area
  • Efficient Sludge Collection & Low Wastages
  • High Range handling capacity of TSS 2000 ppm
  • High Recovery of Clarified Water
  • Very Easy & Low Maintenance Cost
  • Compact design allowing High Flow Rates
  • Flow Range: 0 m³/hr to 1000 m³/hr
  • Material: Available in MS Epoxy coated inside, In Civil Design
  • Handling: Maximum TSS level of 3000 ppm
  • Sludge Consistency: 2 to 5%
  • Industrial Processes
  • Wastewater Treatment
  • Metal Finishing
  • Food and Dairy

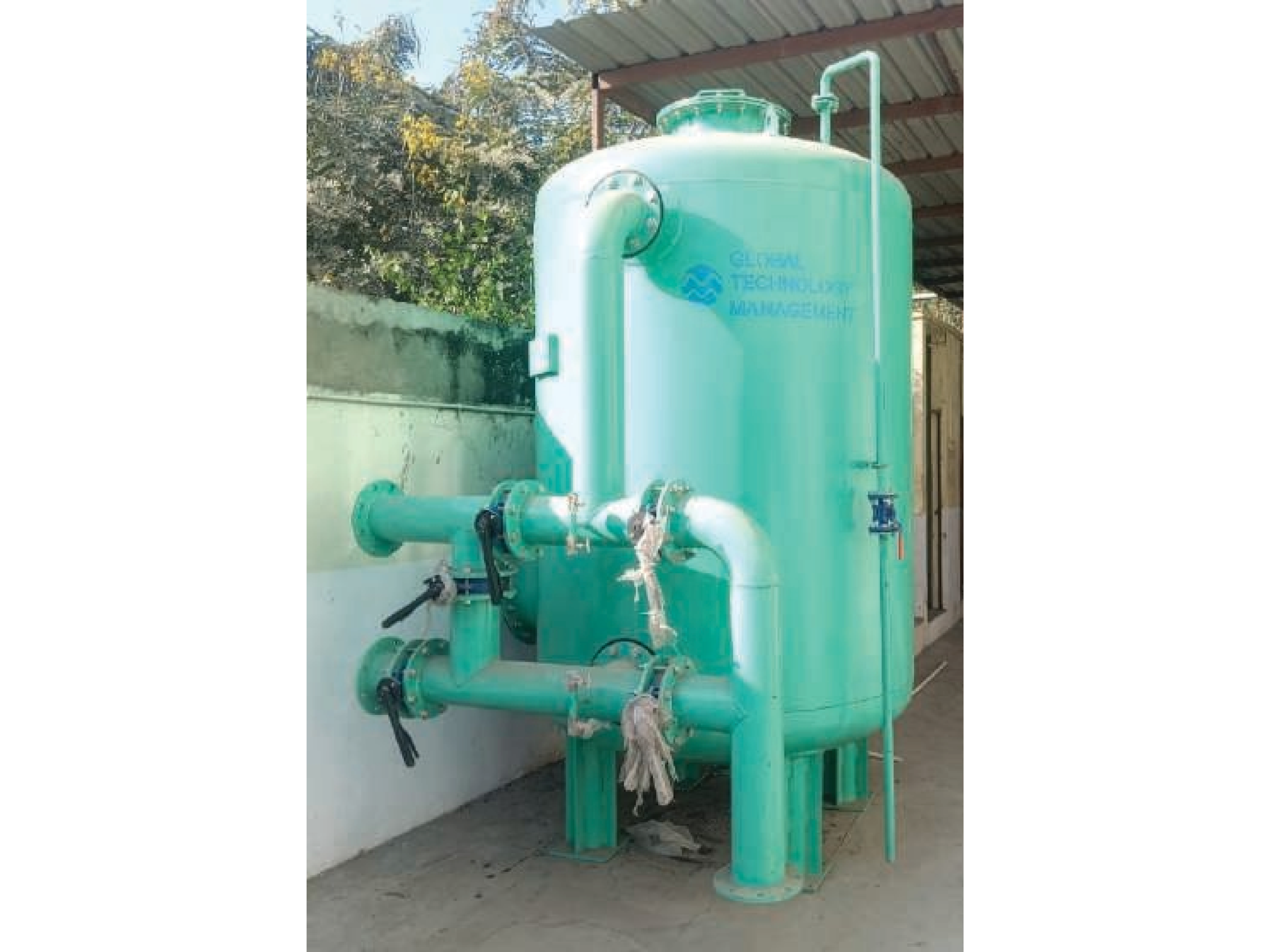

Crysta Multi Grade Sand Filter

Crysta MGF

Crysta MGF is efficient in reducing suspended solids and turbidity from water, it consists of a combination of coarse and fine sand media, typically sand, gravel, and pebbles.

  • Designed Media Bed Height
  • Efficient & Consistent particle Removal from 25 ppm to 5 ppm
  • Consistency ensured in Depth Filtration
  • Low Energy Backwash Mechanism
  • High Filtration Efficiency & Higher Flow Rates
  • Flow Range: 10 m³/hr to 200 m³/hr
  • Material: Available in MS Epoxy, Bituminus, Rubber coated inside
  • Handling: Maximum TSS level of 25 ppm
  • Wastewater Treatment & Industrial Water Treatment
  • Pre-treatment for RO & Demineralization Plant
  • Drinking Water Treatment

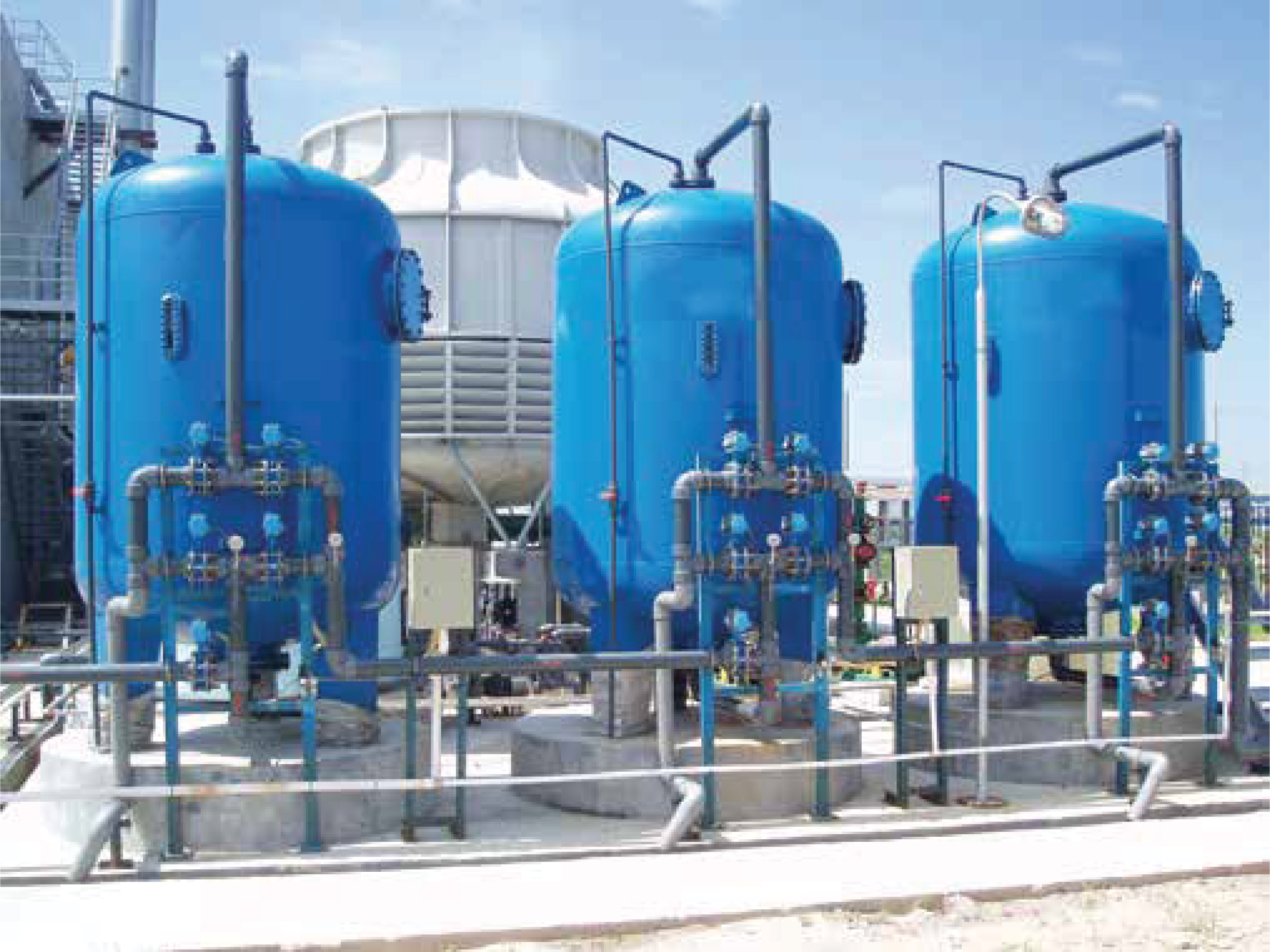

Crysta Activated Carbon Filters

Crysta Activated Carbon Filters (ACF)

Crysta ACF operates on the principle of adsorption. The activated carbon material has a highly porous structure, providing a vast surface area for adsorption to occur, trapping contaminants as fluid passes through.

  • High Adsorption Capacity due to Highly Porous Structure
  • Easy Backwashing
  • Efficient reduction of Free Chlorine from 1 ppm to 0.1 ppm
  • Efficient removal of H2S gases resulting in Odor Free Purified Water
  • Efficient reduction of turbidity from 5 NTU to < 1 NTU
  • Wastewater Treatment
  • HVAC Cooling Towers
  • Water Treatment & Industrial Processes

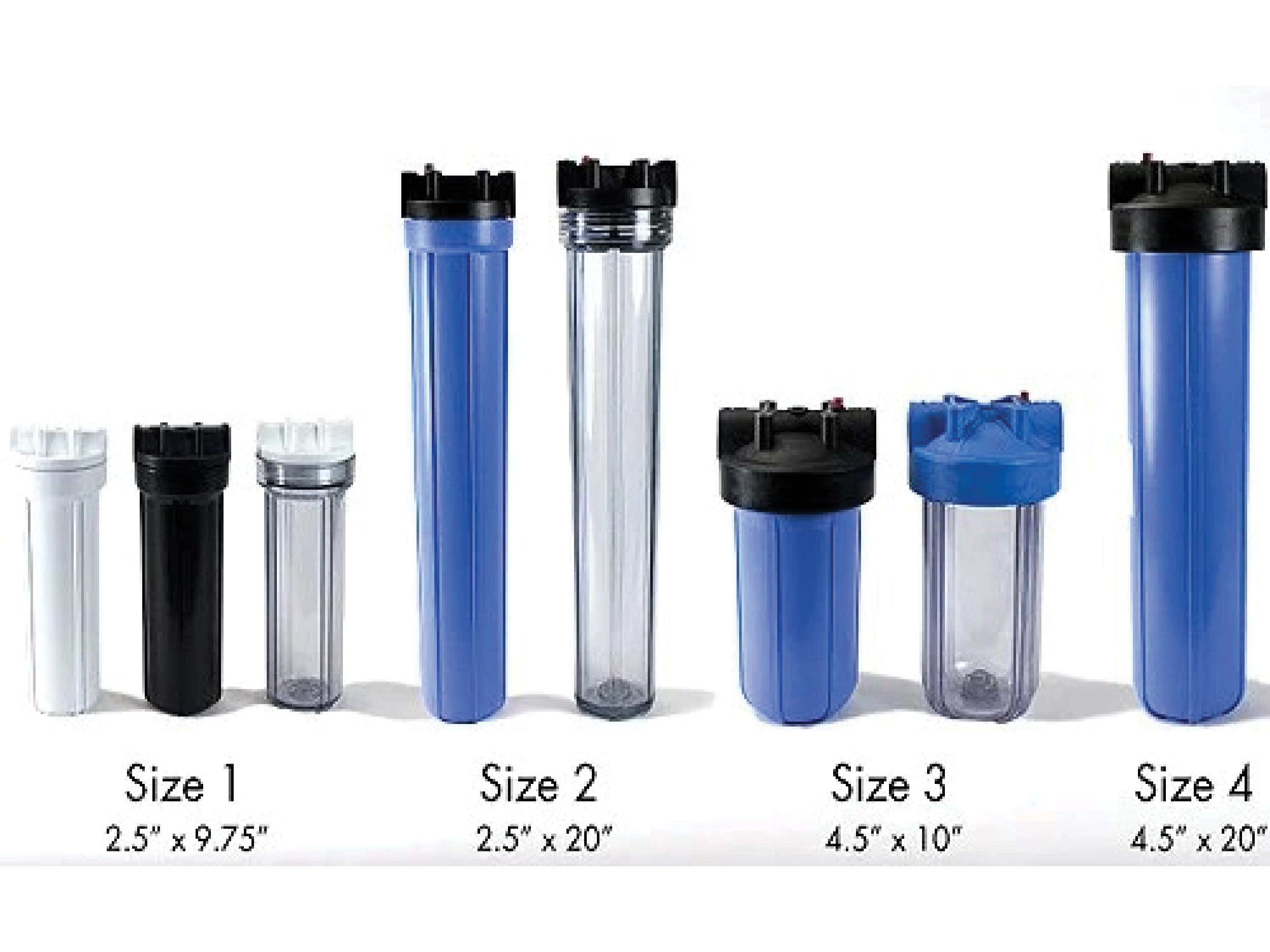

Crysta MCF Cartridges

Crysta MCF (Micron Cartridge Filters)

Industrial micron cartridge filters are cylindrical filtration devices designed to remove particulate matter from liquids, using a filter medium with precise pore sizes (measured in microns) to capture contaminants. Widely used for pre-treatment for RO plants.

  • High Efficiency & Durable Design
  • Easy Cartridge Replacement Mechanism
  • Internal Washing Arrangement & Optional Easy Backwashing
  • Leak Free Fitting Arrangement
  • High Accuracy for feed and product separation
  • Flow Range: 10 m³/hr to 200 m³/hr
  • Material: Poly Propylne, HDPE, SS, MS Rubber coated inside
  • Handling: Maximum TSS level of 5 ppm
  • Cartridges: Available in 5 micron sizes from 10" to 40" long
  • Sizes: 2.5"x9.75", 2.5"x20", 4.5"x10", 4.5"x20"

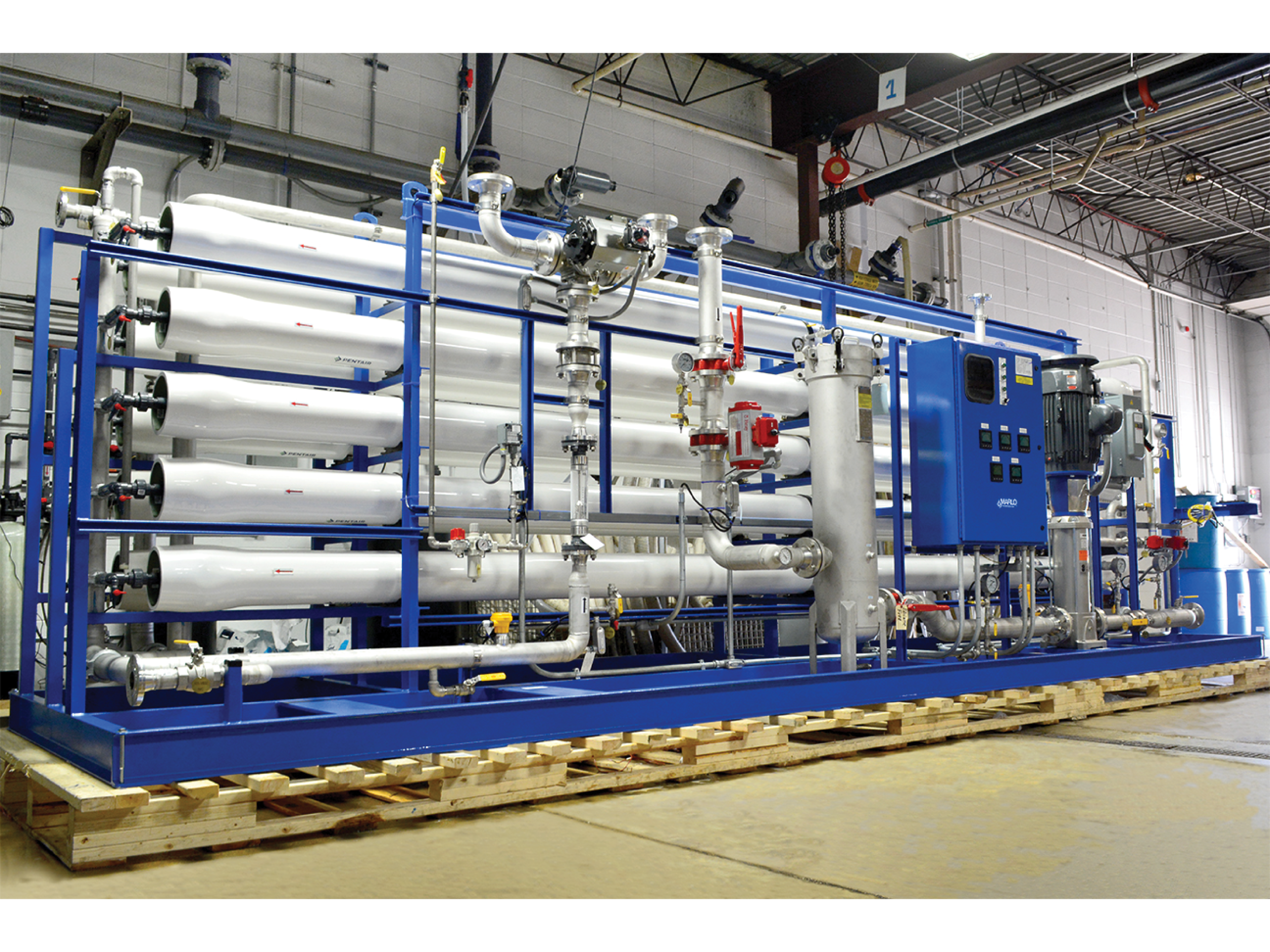

Crysta RO Plant

Crysta RO Plant

An industrial reverse osmosis (RO) system designed to purify water by reducing dissolved salts, minerals, and other impurities using a semi-permeable membrane.

  • Components: Pre-treatment System, High-Pressure Pump, RO Membrane, Post-treatment System, Instrumentation and Control System.
  • Benefits: High-Quality Water, Water Conservation, Environmental Protection, Cost Savings, Producing low TDS Product Water.
  • Capacity: From 250 LPH to 200 m³/hr
  • Input TDS: 25000 ppm
  • Recovery Rate: From 25% to 90%
  • Wastewater Treatment
  • Drinking Water
  • Process Water

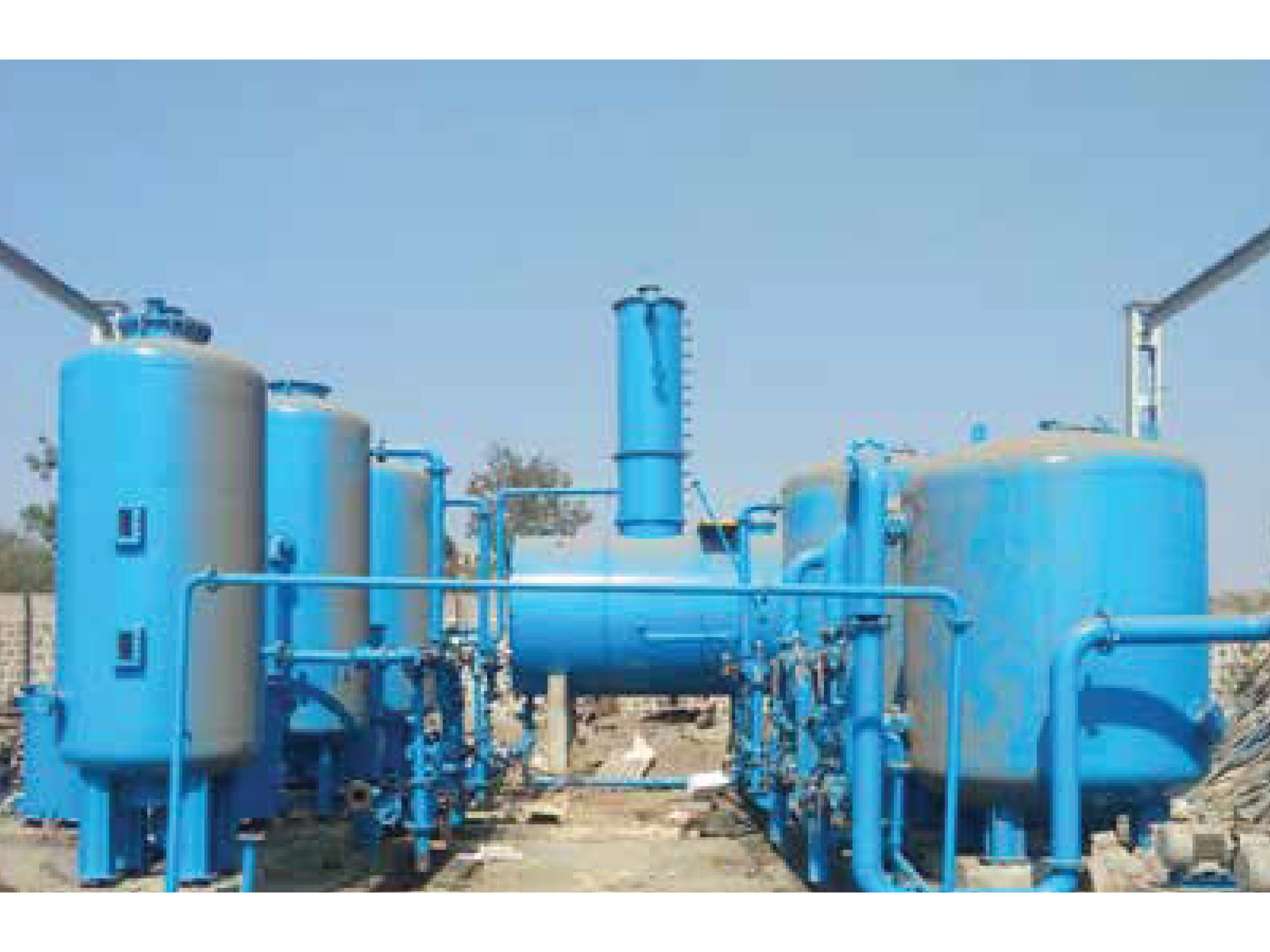

Crysta DM Plant

Crysta DM Plant

An industrial Demineralized plant that removes dissolved minerals and salts from water using an ion exchange resins process. Produces high-purity water suitable for crucial industrial applications.

  • Components: Cation & Anion Resin, Pressure Vessel, De gasser Tower Ejector System, Regeneration Tank, Piping and Valves, Instrumentation and Controls.
  • Benefits: High Purity, Durable, Cost-Effective.
  • Capacity: From 2000 LPH to 200 m³/hr
  • Input TDS: 500 ppm
  • Recovery Rate: 90%
  • High Purity Water & Ultra Pure Water
  • Boiler Feed Water
  • Process Water

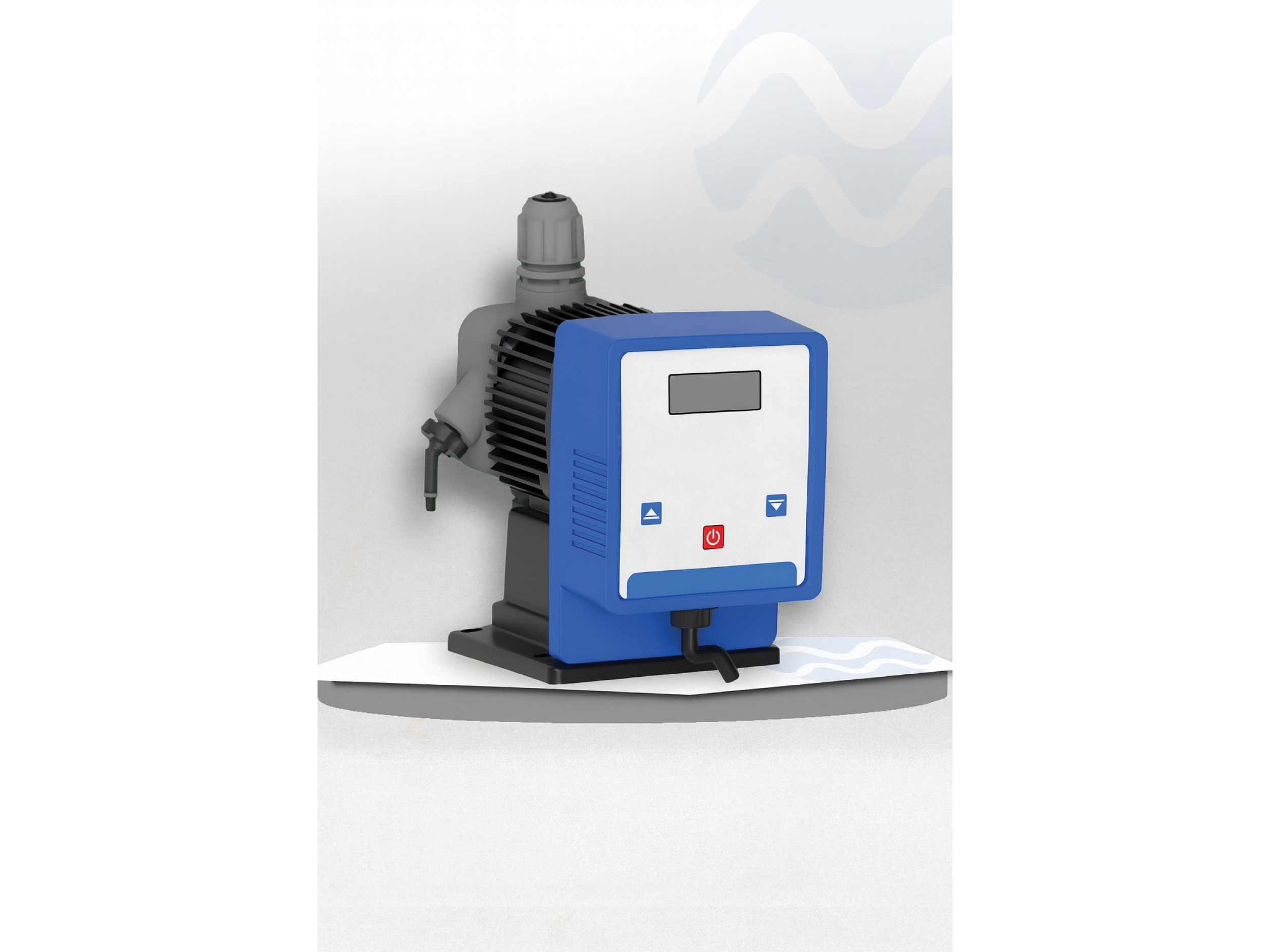

Crysta Chemical Dosing System

Crysta Chemical Dosing System

Crysta Dose precisely adds chemicals into a process stream, maintaining desired fluid properties. It typically includes a chemical storage tank, a dosing pump piping, and a control panel with sensors and controllers to ensure accurate and consistent chemical delivery.

  • High Efficiency, Monitoring and Safety Devices
  • Digital Display for more Accuracy
  • Precise Dosing with durable life
  • Optimized Chemical dosing for better results
  • Capacity: 6 LPH to 1000 LPH
  • Output: 4 to 20 ma
  • Controls: RS 485, Remote Monitoring
  • Wastewater Treatment
  • HVAC Cooling Towers
  • Water Treatment

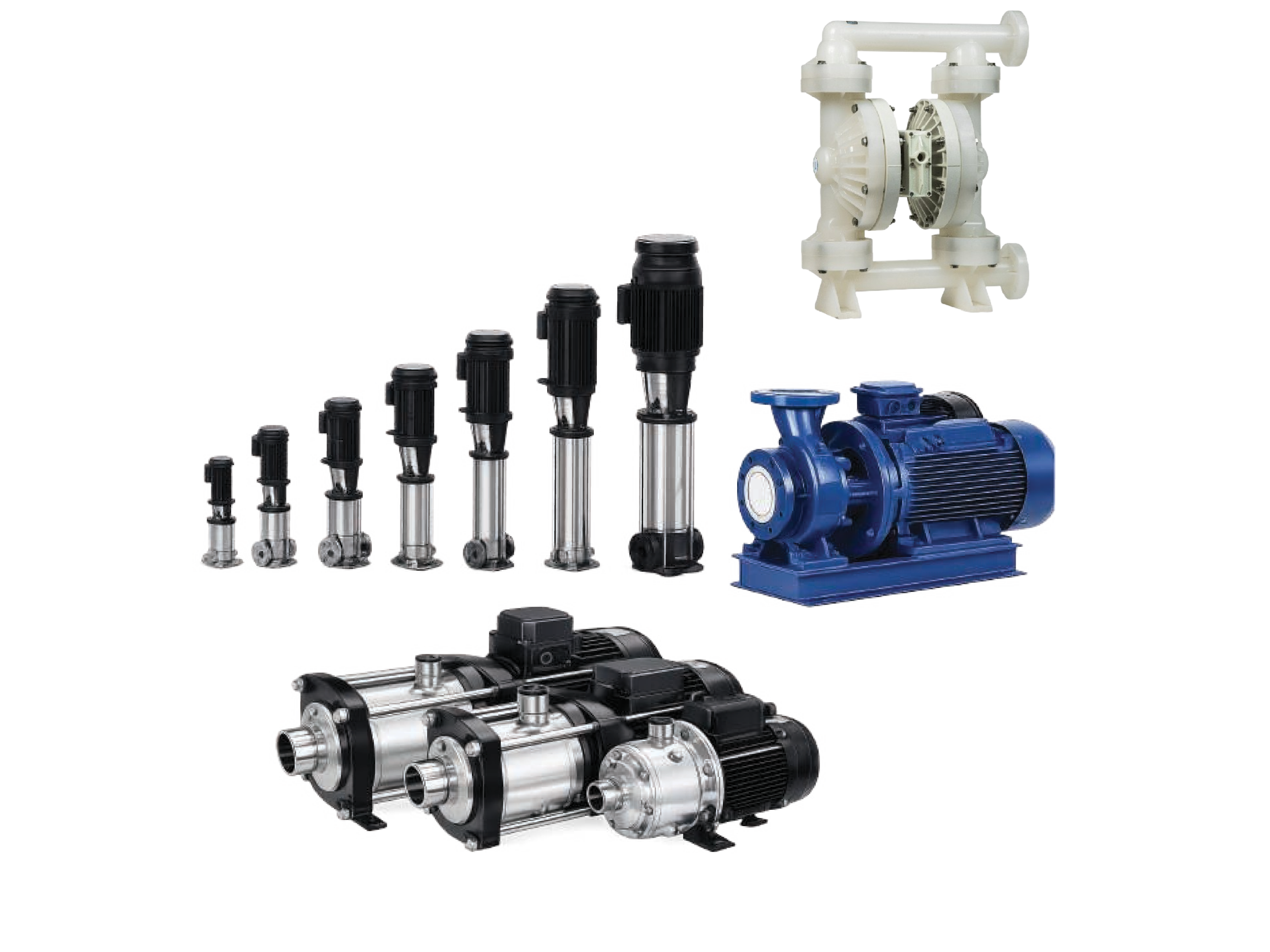

Crysta Flow Pumps

Crysta Flow Pumps

Crysta Flow Pumps are designed to be highly efficient, sturdy, and low maintenance with a low life cycle cost. GTM provides Surface Centrifugal Pumps - Mono Block, End Suction Back Pull Out, and Inline Multistage High Pressure Pumps.

  • High Efficiency & Cost-Effective
  • Durability and Easy Maintenance
  • Key Components: Casing, Impeller (Close, Semi Close, and Open), Mechanical Seal
  • Capacity: From 1m³/hr to 1000 m³/hr
  • Materials Available: CI, SS304, SS316, SS316L, Alloy, Non-metallic

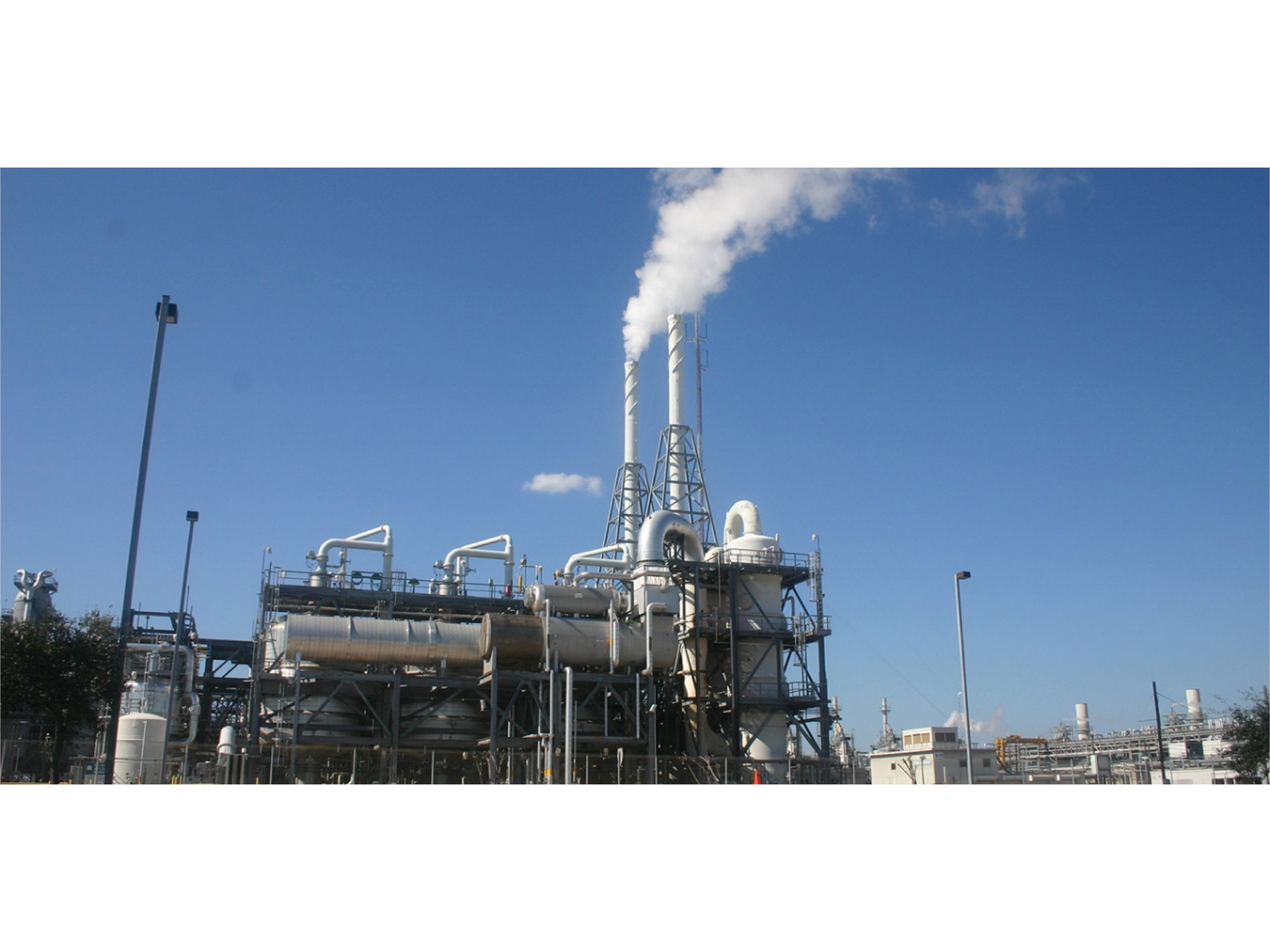

Water Treatment Chemicals

Water Treatment Chemicals

GTM provides an entire range of Water Treatment Chemicals for Raw Water Disinfection, Coagulation, Flocculation, Pre-Treatment of RO Plants, Boilers, Cooling Towers, and Chillers.

  • Disinfectant: For stagnant water sump & reservoir.
  • Boiler Water Treatment: Oxygen Scavenger Deposit Controller, pH Booster, Coil & Tubes Descalant.
  • Chiller Water Treatment: Corrosion & Scale Inhibitor, Descalant.
  • Cooling Tower Water Treatment: Corrosion & Scale Inhibitor, Oxidizing Biocide, Non Oxidizing Biocide, Bio Dispersant.
  • RO & General: Coagulant, Flocculent- Polymer, Online Disinfectant, Reverse Osmosis Membranes Antiscalant, Descalant, Additives.
